Comparison Chart
VORTEX ARGB
|
VORTEX ARGB
|
VORTEX RGB
|
VORTEX RGB
|
VORTEX RGB
|
|
|---|---|---|---|---|---|
| Fan Interface | 4PIN-PWM plug | 4PIN-PWM plug | 4PIN-PWM plug | 4PIN-PWM plug | 6PIN-COUGAR plug |
| Light Interface | 3PIN-ARGB plug | 3PIN-ARGB plug | 6PIN-COUGAR plug | 6PIN-COUGAR plug | 6PIN-COUGAR plug |

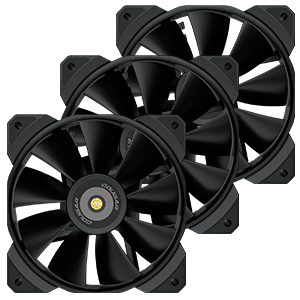

| Type | 3-Fan Cooling Kit | 3-Fan Cooling Kit | 3-Fan Cooling Kit | 3-Fan Cooling Kit | 3-Fan Cooling Kit |
| Bearing |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HB (Hydraulic-Bearing) |
| Dimensions(mm) W x H x D |
120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 |
| PWM Control | Yes | Yes | Yes | Yes | No |
| LED Lighting | Dual RGB Circle | Single RGB Circle | Dual RGB Circle | Single RGB Circle | Single RGB Circle |
| Core Box V2 | - | - | Included | Included | - |
| Core Box C | - | - | - | - | Included |
| Wireless Controller | - | - | Included | Included | - |
| 5V ARGB plugs for Motherboard Sync |
Built-in 3pin-ARGB | Built-in 3pin-ARGB | With COREBOX V2(Included) or attached adapter |
With COREBOX V2(Included) or attached adapter |
With COREBOX C(Included) |

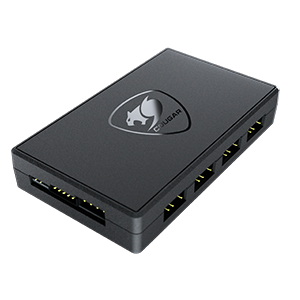

COUGAR Core Box V3 |
Cougar Core Box V2 |
COUGAR Core Box C |
COUGAR Core Box |
|
|---|---|---|---|---|
| Fan Ports Type | 4PIN-PWM port * 6 | 6PIN-COUGAR port * 8 | 6PIN-COUGAR port * 8 | 6PIN-COUGAR port * 8 |
| Light Ports Type | 3PIN-ARGB port * 6 | 4PIN-COUGAR port * 2 | 4PIN-COUGAR port * 2 | 4PIN-COUGAR port * 2 |
| Supported COUGAR Fan Series |
Vortex VK series Other 4pin PWM fans Other 3pin ARGB fans |
Vortex FCB Series Vortex HPB Series Vortex SPB Series |
Vortex FCB Series Vortex HPB Series Vortex SPB Series |
Vortex FCB Series Vortex HPB Series |
| Remote Control + 100 Preset Effects |
No | Yes | No | Yes |
| Switch Control + 14 Preset Effects |
Yes | No | Yes | No |
| Direct ARGB Sync with Motherboard |
Yes | Yes | Yes | No |
| Products that Include It | - | ‧Vortex RGB HPB 120 Cooling Kit (Second and Later Batches) ‧Vortex RGB SPB 120 Cooling Kit ‧Liquid Cooling 240 |
‧Turret RGB ‧Puritas RGB ‧Vortex RGB FCB 120 Cooling Kit |
‧Vortex RGB HPB 120 Cooling Kit (First Batch) |
VORTEX ARGB
|
VORTEX ARGB
|
VORTEX RGB
|
VORTEX RGB
|
VORTEX RGB
|
|
|---|---|---|---|---|---|
| Fan Interface | 4PIN-PWM plug | 4PIN-PWM plug | 4PIN-PWM plug | 4PIN-PWM plug | 6PIN-COUGAR plug |
| Light Interface | 3PIN-ARGB plug | 3PIN-ARGB plug | 6PIN-COUGAR plug | 6PIN-COUGAR plug | 6PIN-COUGAR plug |

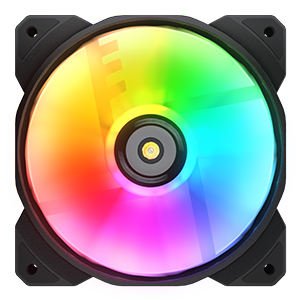

| Type | Single Fan | Single Fan | Single Fan | Single Fan | Single Fan |
| Bearing |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HDB (Hydro-Dynamic-Bearing) |
HB (Hydraulic-Bearing) |
| Dimensions(mm) W x H x D |
120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 | 120 x 120 x 25 |
| PWM Control | Yes | Yes | Yes | Yes | No |
| LED Lighting | Dual RGB Circle | Single RGB Circle | Dual RGB Circle | Single RGB Circle | Single RGB Circle |
| Core Box V3 | Supported* | Supported* | Supported* (With attached adapter) |
Supported* (With attached adapter) |
- |
| Core Box V2 | - | - | Supported* | Supported* | Supported* |
| Core Box C | - | - | Supported* | Supported* | Supported* |
| Wireless Controller | - | - | Yes if connected to Core Box V2 |
Yes if connected to Core Box V2 |
Yes if connected to Core Box V2 |
| 5V ARGB plugs for Motherboard ARGB Sync |
Yes | Yes | Yes, If connected with core box V2 core box C attached adapter |
Yes, If connected with core box V2 core box C attached adapter |
Yes, If connected with core box V2 core box C |
* This product supports control boxes from the COUGAR Core Box series, which is sold separately.
